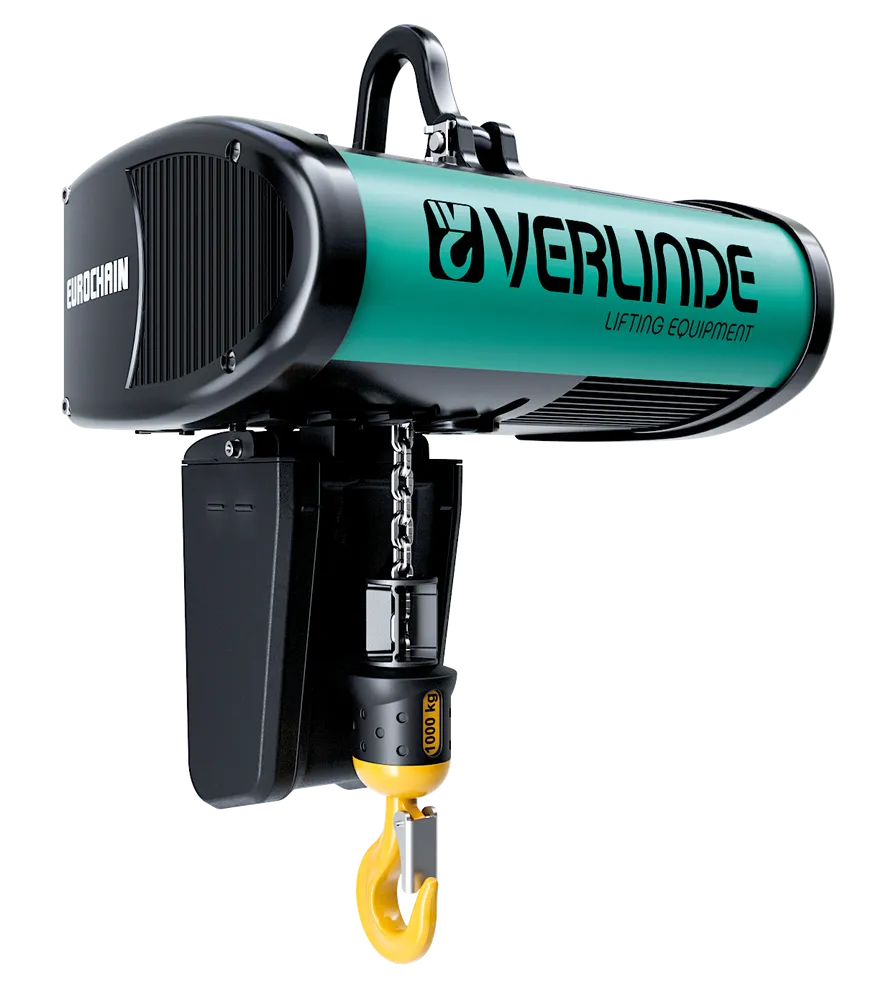

Eurochain VX
- Capacity
- 63 to 2500kg
placeholder
:quality(80):focal(1136x1363:1137x1364))
:quality(80))
:quality(80))
Adaptative lifting for demanding environments.

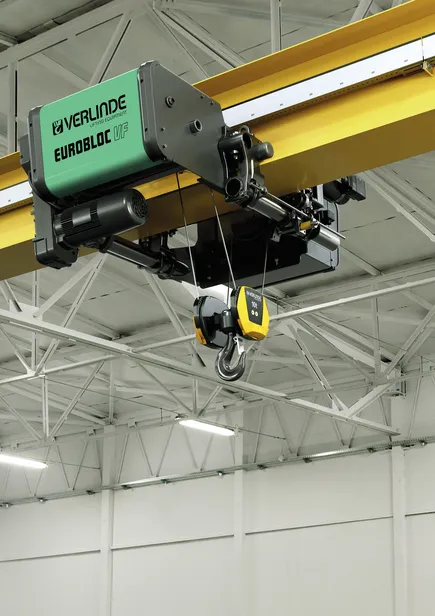

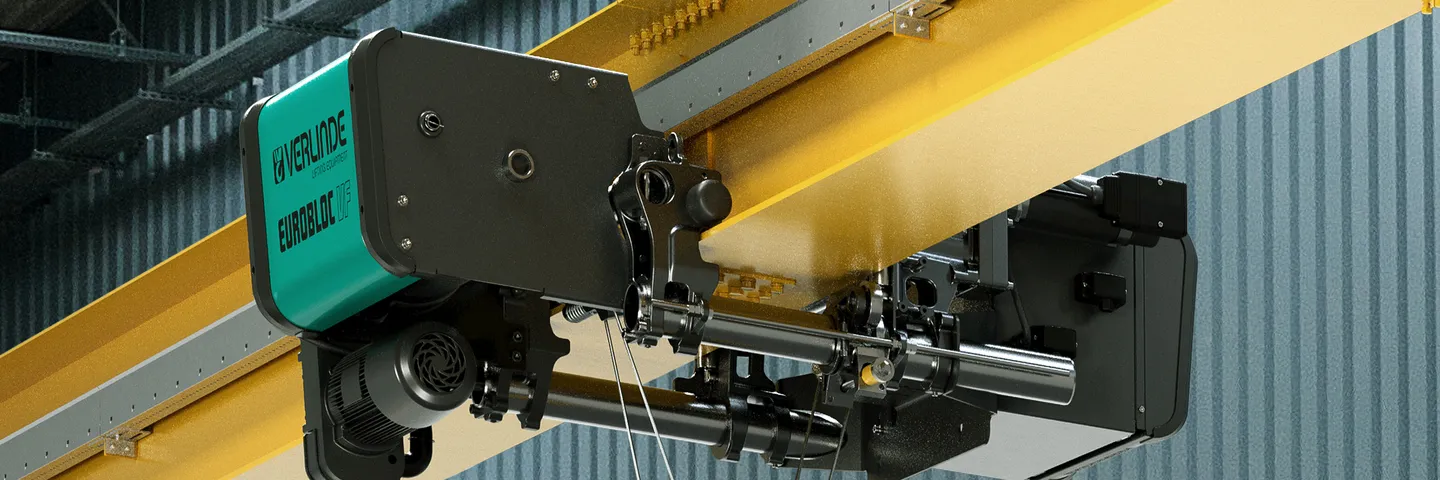

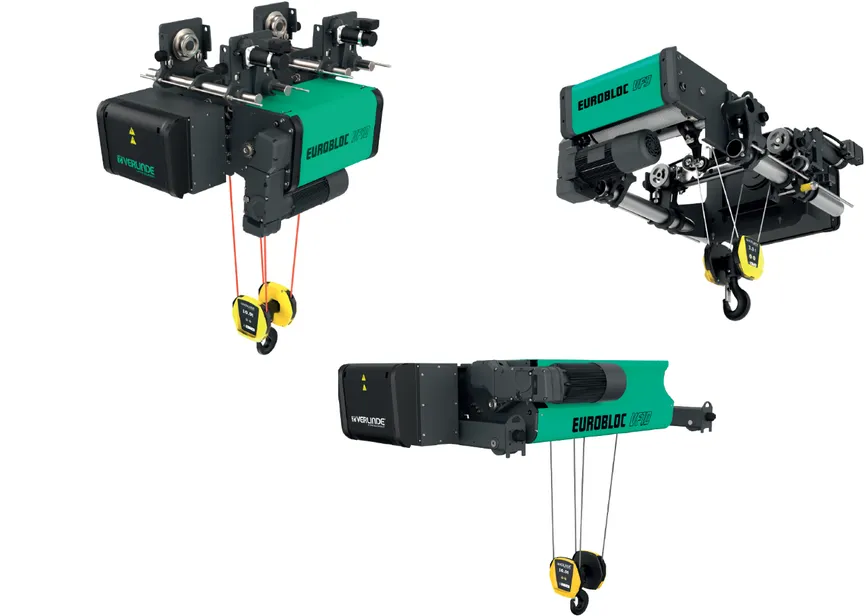

With numerous patents, the new Eurobloc VF wire rope hoist, available with steel or synthetic cable, is a next-generation lifting solution designed to deliver high-performance for demanding industrial applications. Combining reliability, precision and advanced engineering, it ensures smooth and controlled load handling across a wide range of lifting capacities and operating conditions. Built for efficiency and system integration, Eurobloc VF is suitable for production lines, workshops and complex material handling environments where performance, adaptability and operational continuity are essential.
Designed for easier maintenance and enhanced safety.
Eurobloc VF is engineered to simplify servicing and improve long-term reliability. Its symmetrical motor/gearbox coupling can be assembled in both directions and inspected without dismantling, while the lifting and travel motor gear units are positioned for easy access. With synthetic rope, no lubrication is required, reducing maintenance needs even further. Safety is reinforced through an ergonomic hook block with finger protection, an optional blue light safety system indicating the hoist working area, and remote monitoring of operating parameters and maintenance needs through Verlinde’s ExpertCare and ExpertMonitoring applications.
Load capacity
1000kgto20000kg
Standard lifting range
6mto53m
Aeronautics
Automotive
Food industry
Port industry
Mining
Chemicals
Power plants
Waste recovery
:quality(80))
Easy integration into new or existing crane and hoist configurations.
Adaptable architecture to meet a wide variety of application requirements.
Symmetrical motor/gear box coupling that can be assembled in both directions. And can be checked without disassembly.
Steering and lifting geared motor groups easily accessible thanks to their positioning.
With synthetic rope, no lubrification is required.
Easy access to electrics for easier maintenance.

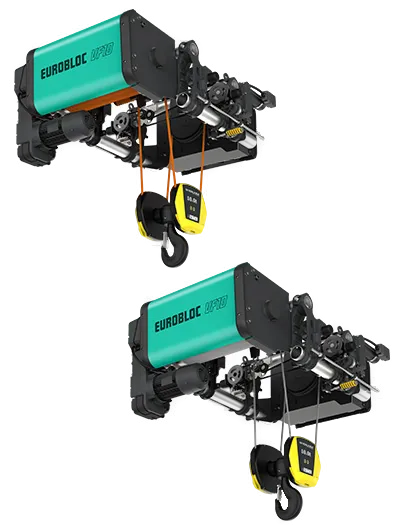

With synthetic rope: modern solution with less wear on drum and pulleys than steel, cleaner product, light weight, ease of replacing.
Better distribution of the wheel load.
Travelling trolley adjustment simplified and carried out by threaded rod.
Accurate load control with electronic limiter (MT3 or MT4).
Extension Speed Range (ESR variator) allowing reduction of cycle time.
Ergonomic hook bloc with finger protection.
Blue safety light (optional) indicating the hoist working area.
Remote monitoring with visualisation of parameters and maintenance requirements thanks to Verlinde’s ExpertCare and ExpertMonitoring applications.
:quality(80))
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
:quality(80))
Lifting speed from 4 m/min to 16 m/min
Versions: bracket, low headroom, normal headroom, swivel trolley
Trolleys: motorized / push
:quality(80))
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixe suspended, normal headroom
Trolley: motorised
:quality(80))
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized

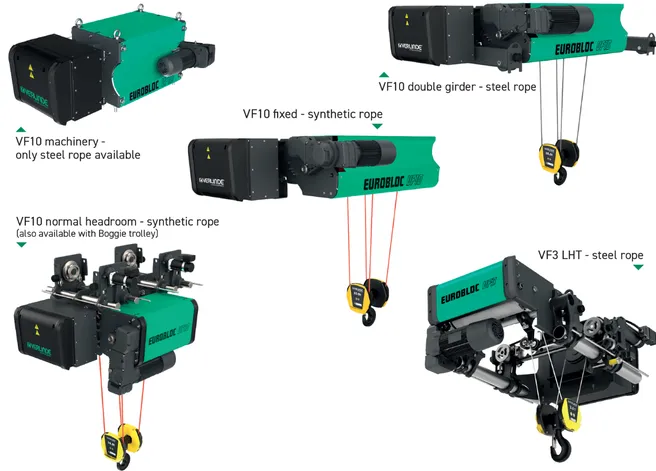

With numerous patents, the new Eurobloc VF range modernises the codes of electric wire rope hoists and fits into today’s connected world. With optimised operation and maintenance, as well as a customisable and sustainable product offer, Eurobloc VF also improves the safety of users and installations. Its synthetic cable made of Dyneema® fiber provides a real innovation and enlarges hoist applications in demanding environments. The range is currently available in low headroom, normal headroom, fixed, double-girder, swivel trolley and mechanism versions.

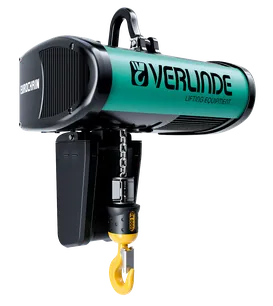

With its compact product design and three key configurations (fixed hoist suspended by lug, hoist on a monorail trolley with push travel, and hoist on a monorail trolley with electric travel), Eurochain VX range integrates easily into many production environments. Thanks to its many optimized and reinforced components, it also greatly improves the durability of installations.

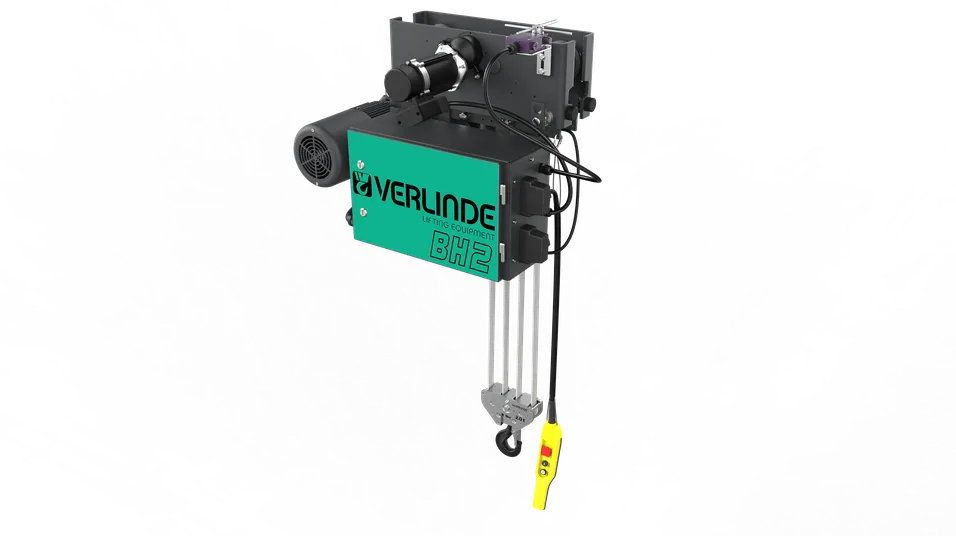

Thanks to their Dyneema® belt, adapted parts and product configurations, the BH range reaches high performance standards and meets numerous demanding installations.

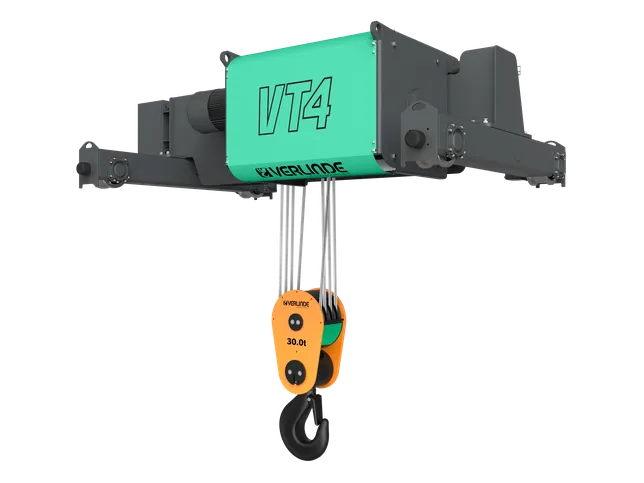

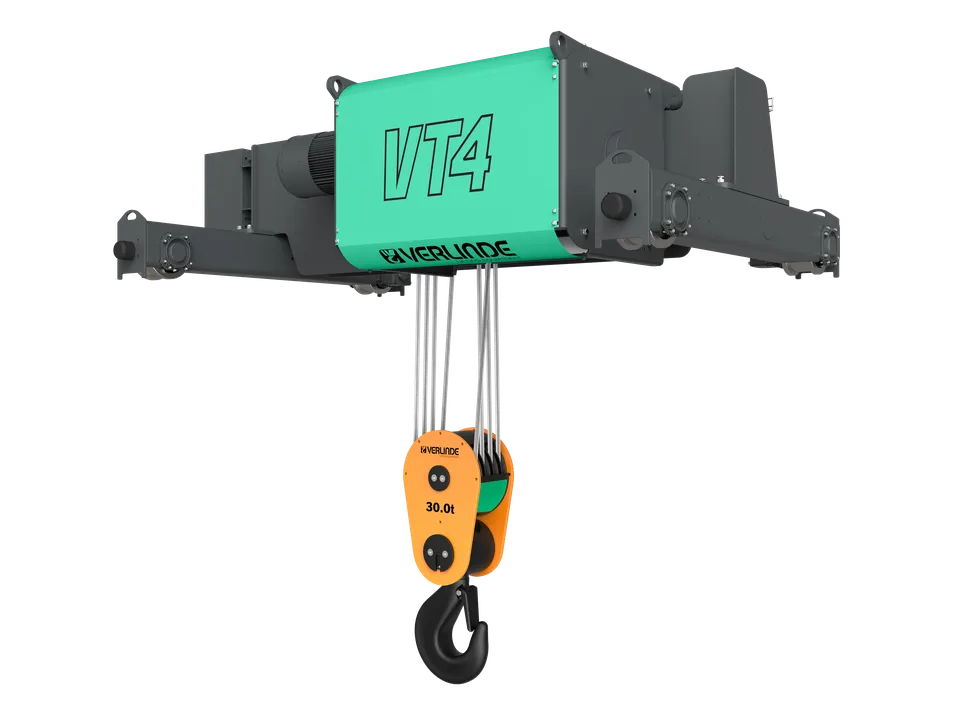

Eurobloc VT is a wire rope hoist designed for high performance and productivity. Its key differentiating features include a compact design, superior lifting guidance through near-vertical lifting, enhanced positioning accuracy thanks to variable travel speed control, and advanced monitoring functions (MT4) for tracking operating life and load cycles.
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
Lifting speed from 4 m/min to 16 m/min
Versions: bracket, low headroom, normal headroom, swivel trolley
Trolleys: motorized / push
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixe suspended, normal headroom
Trolley: motorised
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
