Eurobloc VF
- Capacity
- 1000 to 20000kg
placeholder
:quality(80):focal(1207x1172:1208x1173))
:quality(80):focal(1352x1525:1353x1526))
:quality(80):focal(1647x1379:1648x1380))
:quality(80))
Clean by design. Engineered for excellence.
The BH series sets a new standard in industrial lifting. Featuring innovative Dyneema® white belt technology and offering capacities of up to 6300 kg, it is designed for environments such as food processing and pharmaceutical facilities, as well as all applications requiring strict technical cleanliness—and much more. BH hoists deliver smooth, contamination-free performance while meeting the demands of the most challenging industrial environments.
A new generation of clean lifting technology.
At the heart of the BH range is the white Dyneema® belt—one of the world's strongest and most advanced fibers. Combined with stainless-steel components, sealed bearings, and plastic or stainless-steel pulleys, it creates a lifting solution designed for superior cleanliness and easy maintenance. Unlike conventional chain or wire rope hoists, the BH range requires no lubrication and minimizes contamination risks by eliminating metal particle generation.
Load capacity
125kgto6300kg
Standard lifting range
4.5mto9m
Abrasive dust, powder or flour, big-bag handling areas
“Technical Cleanliness” according ISO 16232
“Cleanroom” according ISO14644-1 and -14 for BH2 stainless steel versions hoists.
Food industry
Pharmaceuticals
Chemicals
Electronics industry
Water treatment industry
:quality(80))
As BH product ranges offers stainless-steel hooks, hook blocks, wheels, cubicles etc., with always sealed bearings and made of plastic or stainless steel pulleys, they can easily be cleaned and also grant a less contaminated environment in contrast to chain or rope hoists. In fact, for that specific part, pulleys and belts do not produce any metal particles which fall off or encounter the products.
With Dyneema® belt, no lubrification is required. This, in addition to BH hoists’ design, provides equipement which better withstand high humidity.
The original white color of the Dyneema® belt has been kept to make it easier to recognize the dirt on the belt in sensitive working environments.
BH2 has an electronical overload device with MT3.
BH2 and BH5 are equipped with 4-step Stromag geared limit switch.
Function for:
Phase mismatch control (2-speed); lower slow down (inverter hoisting)
Lower position STOP
Upper position SLOW-DOWN
Upper position STOP
Dyneema® fibers are currently the strongest fibers worldwide available, and have highest resistance against any chemicals.
No polygonal effect on the load. Thanks to their belt/drum combination, BH hoists are free from this phenomenon and thus offer a linear speed, providing the best solution in terms of flexibility and positioning for soft light cranes and jibs.
BH2 stainless steel version hoists have been Cleanroom certified class 7 according to ISO14644-1 and -14 by Fraunhofer institute.
:quality(80))

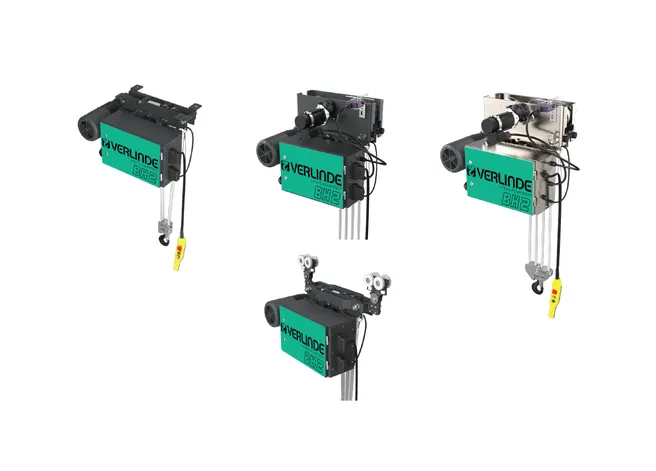

BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixe suspended, normal headroom
Trolley: motorised
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixe suspended, normal headroom
Trolley: motorised
:quality(80))
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
:quality(80))
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
:quality(80))
Lifting speed from 4 m/min to 16 m/min
Versions: bracket, low headroom, normal headroom, swivel trolley
Trolleys: motorized / push
Thanks to their Dyneema® belt, adapted parts and product configurations, the BH range reaches high performance standards and meets numerous demanding installations.

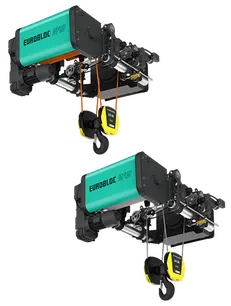

With numerous patents, the new Eurobloc VF range modernises the codes of electric wire rope hoists and fits into today’s connected world. With optimised operation and maintenance, as well as a customisable and sustainable product offer, Eurobloc VF also improves the safety of users and installations. Its synthetic cable made of Dyneema® fiber provides a real innovation and enlarges hoist applications in demanding environments. The range is currently available in low headroom, normal headroom, fixed, double-girder, swivel trolley and mechanism versions.
Eurobloc VT is a wire rope hoist designed for high performance and productivity. Its key differentiating features include a compact design, superior lifting guidance through near-vertical lifting, enhanced positioning accuracy thanks to variable travel speed control, and advanced monitoring functions (MT4) for tracking operating life and load cycles.
With its compact product design and three key configurations (fixed hoist suspended by lug, hoist on a monorail trolley with push travel, and hoist on a monorail trolley with electric travel), Eurochain VX range integrates easily into many production environments. Thanks to its many optimized and reinforced components, it also greatly improves the durability of installations.
BH2: 5 to 20m/min double speed
BH2 : 0.5 to 20m/min inverter
BH5: 3.8 to 5.9m/min double speed
Versions: fixe suspended, normal headroom
Trolley: motorised
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Lifting speed from 4 m/min to 16 m/min
Versions: bracket, low headroom, normal headroom, swivel trolley
Trolleys: motorized / push
