One of the most compact approach dimensions on the market.

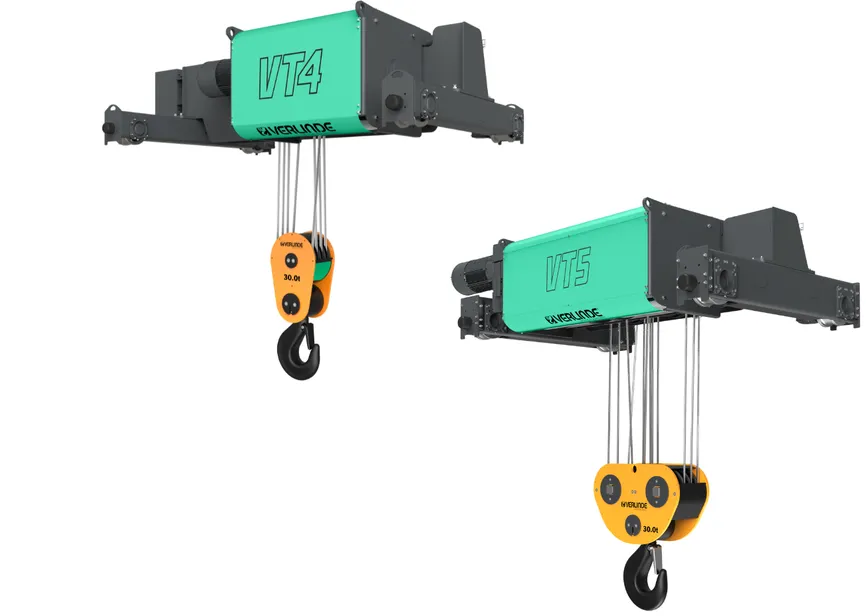

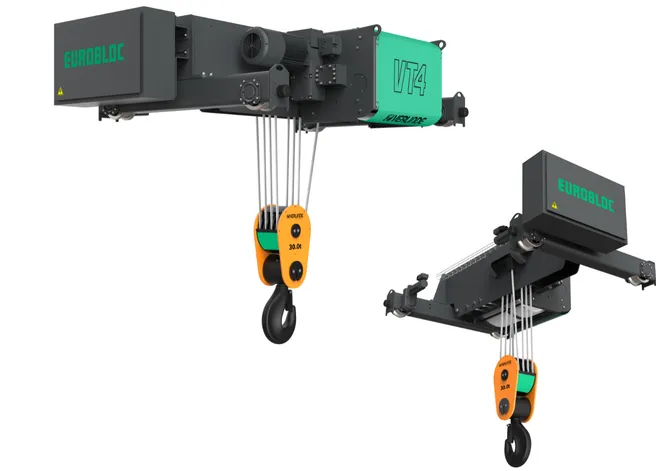

Eurobloc VT, in its standard version, delivers one of the market-leading compactness with the smallest hook approach dimensions, enabling better use of building height and work areas without compromising productivity. Suitable for many installations, Eurobloc VT range is offering fixed, normal, double girder, swivel trolley and machinery versions.
Designed to raise the standard of performance.
Driven by Verlinde’s pioneering culture of expertise, Eurobloc VT, with 13 patents, stands out in particular for its near-vertical lifting capability (with minimal lateral hook block displacement) and the ability to adjust travel speed as a standard feature. These specificities are designed to improve precision, enhance operator comfort, and provide greater control over movement.
Load capacity
6300kgto80000kg
Standard lifting range
5mto98.5m
Aeronautics
Automotive
Shipyards
Rail industry
Port industry
Paper industry
Pharmaceuticals
Metallurgy
:quality(80))
Hook approach dimensions are stated to be among the smallest on the market.
Near-vertical lifting: very limited lateral displacement of the hook block during lifting operations.
Advanced monitoring technology: MT4 system with load cycle recording and DWP (Design Working Period) calculation.
Hoisting brake setting for the entire hoist life (in normal use) and with dust protection.
Extension Speed Range (ESR variator) allowing reduction of cycle time.
Variable travelling speed for precise positioning of loads.
Electronic control of the recording of hoist solicitation status.
Overload limiter (in compliance with the Machinery Directive), low-voltage control, and swivel hook/hook block equipped with a safety latch.
Optional drum brake.
Easily accessible side-mounted electrical enclosure with quick-release closure, and components designed for easier servicing (e.g., spring-free rope guide and protected drum).
Modular construction with universal parts.
Assembly is in modules for an easier management of spare parts replacement.
:quality(80))
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
:quality(80))
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
:quality(80))
Lifting speed from 0.7 m/min to 19 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
Eurobloc VT is a wire rope hoist designed for high performance and productivity. Its key differentiating features include a compact design, superior lifting guidance through near-vertical lifting, enhanced positioning accuracy thanks to variable travel speed control, and advanced monitoring functions (MT4) for tracking operating life and load cycles.
With numerous patents, the new Eurobloc VF range modernises the codes of electric wire rope hoists and fits into today’s connected world. With optimised operation and maintenance, as well as a customisable and sustainable product offer, Eurobloc VF also improves the safety of users and installations. Its synthetic cable made of Dyneema® fiber provides a real innovation and enlarges hoist applications in demanding environments. The range is currently available in low headroom, normal headroom, fixed, double-girder, swivel trolley and mechanism versions.

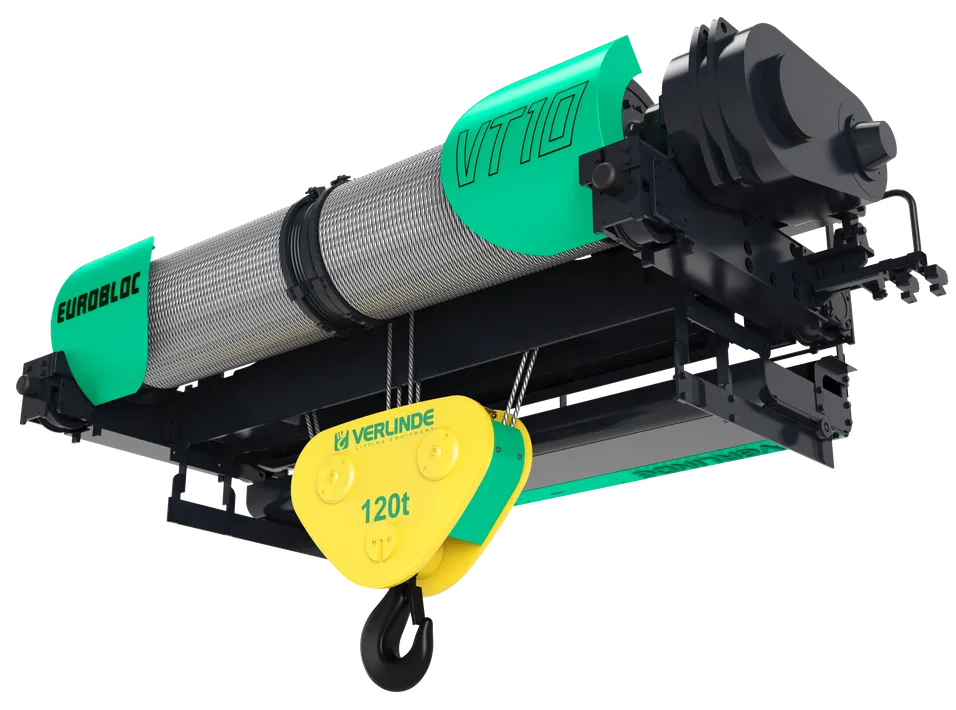

Eurobloc VT9-10-11-12 extends Eurobloc VT range with large, yet compact, electric open winches providing greater lifting capacity (from 10 to 250 tonnes), coupled with smooth handling, high uptime, and strong protection for people and equipment.
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Lifting speed from 0.8 m/min to 16 m/min
Version: low headroom, normal headroom, double girder, fixed, suspended, machinery
Trolley: motorized
Lifting speed from 0.7 m/min to 19 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
