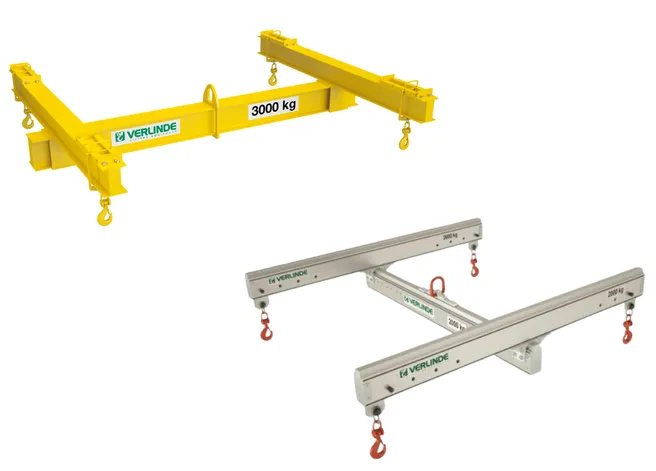

Steel or aluminium configurations. Multi-point rigging interfaces.

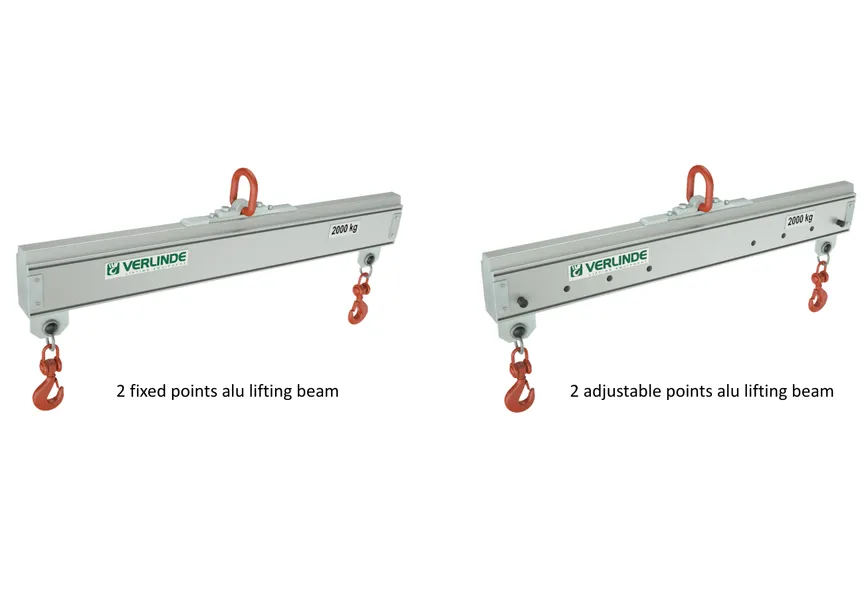

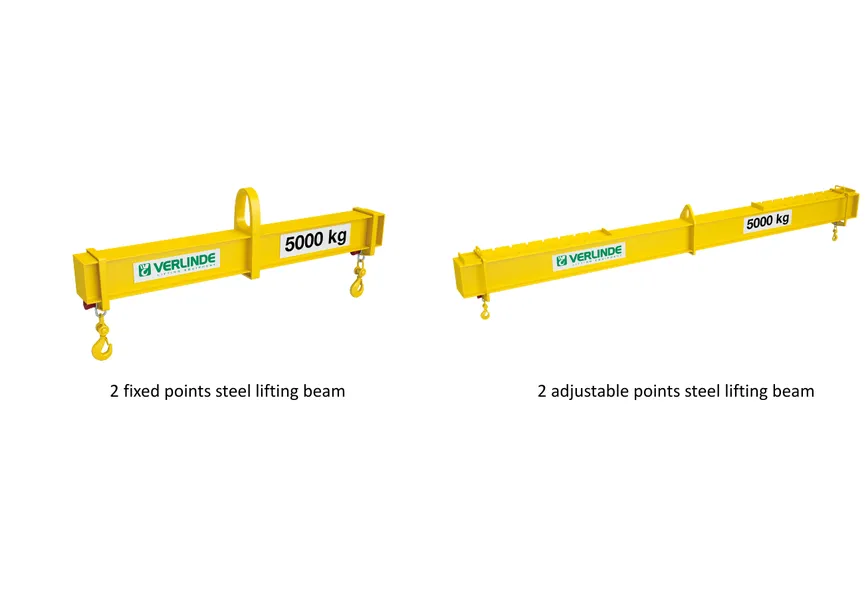

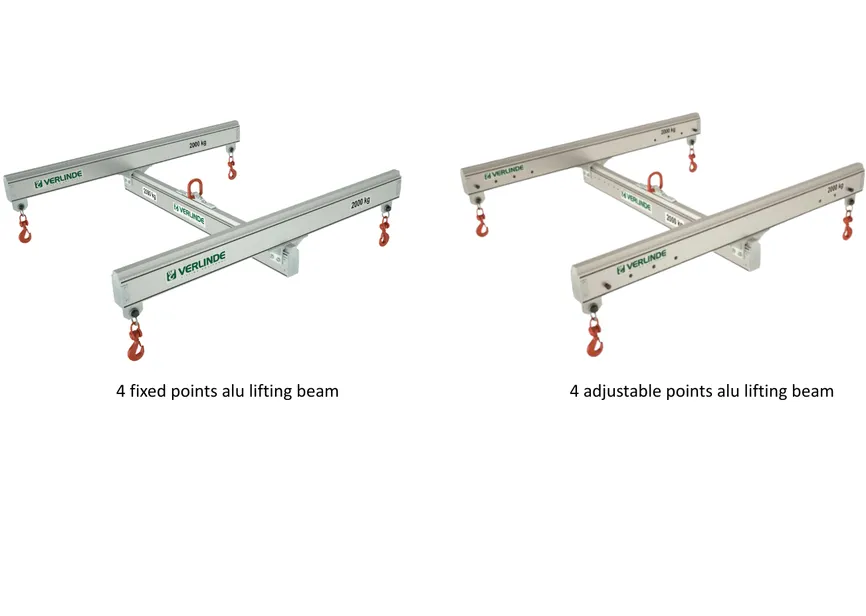

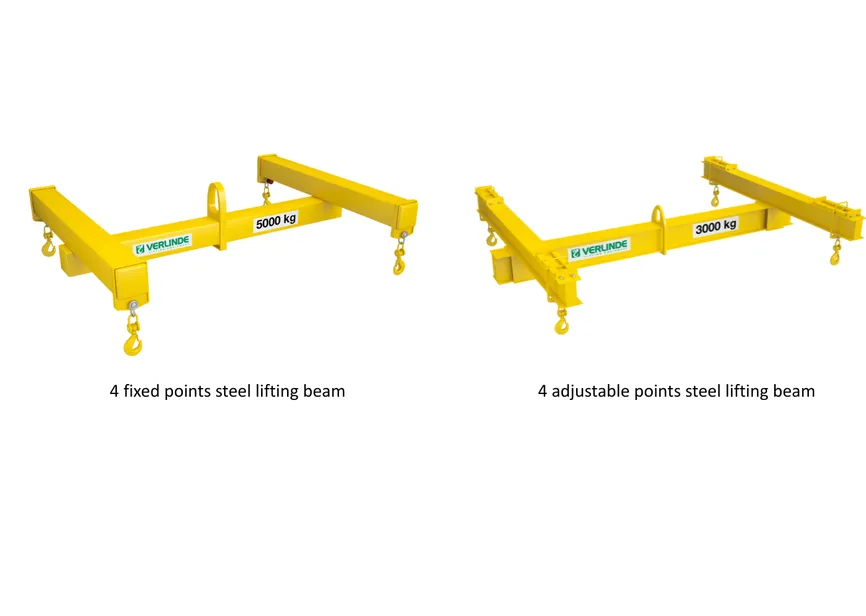

Verlinde lifting beams are designed to ensure safe, balanced and efficient load handling across a wide range of industrial applications. Available in steel or aluminium, with fixed or adjustable lifting points and multiple configurations, they provide the flexibility required to handle various load geometries while maintaining optimum stability. Designed for capacities from 125 kg to 10 tonnes depending on the model, the range includes 2-point and 4-point lifting beams, as well as tailor-made solutions for specific applications. Fully compatible with Verlinde lifting equipment, they help improve load distribution, enhance safety and simplify everyday lifting operations.
High safety factor, customization and durability.
Every Verlinde lifting beam is engineered to combine strength, safety and adaptability. Manufactured without load-bearing welds and compliant with EN 13155 requirements, the range delivers outstanding reliability in demanding environments while maintaining a high safety factor. Beyond the standard range, Verlinde offers extensive customization possibilities, including adjustable lifting points, aluminium construction for lightweight handling, galvanized finishes, special coatings and bespoke designs such as Y-type, X-type or Big Bag lifting beams. This flexibility allows every lifting beam to be tailored to the specific needs of each application, ensuring maximum performance and long-term durability.
Load capacity
125kgto10000kg
Automotive
Food industry
Rail industry
Mining
Quarries
Pharmaceuticals
Mechanical industry
Electronics industry
:quality(80))
Evenly distributes the load across multiple lifting points, improving stability and reducing stress on the load during lifting operations.
Fitted with 2 articulated forged safety swivel hooks.
Tear-resistant eyelet for use with synthetic slings, cables, etc ...
Manufactured in accordance with EN 13155 and supplied with CE declaration of conformity and operating instructions for safe and compliant operation.
Compatible with Verlinde lifting equipment and suitable for a broad range of industries, from manufacturing and logistics to maintenance and heavy industry.
3 type «Y» models with 3 lifting points, or type “X” with 4 lifting points available on request for specific configurations.
Greater load capacities or special lifting beams (eg. big bags, with pick-up fork for pallets) available on request.
