Eurochain VX
- Capacity
- 63 to 2500kg
placeholder
:quality(80):focal(580x138:581x139)){kind=spacer}
:quality(80))
:quality(80))
Motorized mobility. Built for controlled handling.

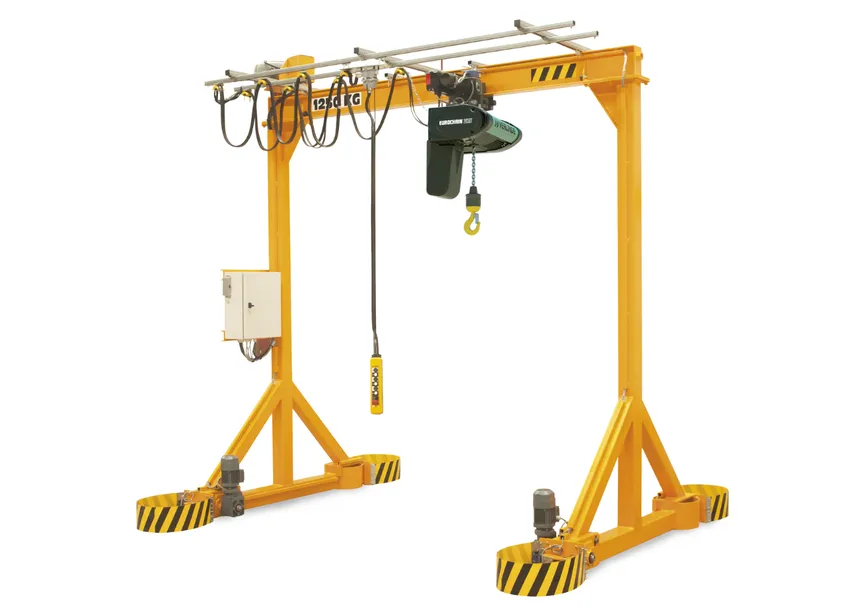

VGIM is a motorized workshop gantry, which is built for indoor and outdoor use on smooth and clean floors. VGIM provides motorized floor motion under load and is designed to support lifting, maintenance, removal, re-installation, and positioning operations. With its welded construction, I-profile design, and standard main isolator, VGIM offers a robust and practical solution for industrial handling applications. A hoist and travelling trolley are available as an option to complete the lifting solution, and max load capacity up to 10000kg possible with ExpertLift.
Controlled movement for safer workshop handling.
VGIM is designed to make load handling smoother and more controlled in workshop and industrial environments. Its motorized floor motion under load, two travelling speeds, and gantry swiveling by motor inversion help operators position loads with greater precision. A low-voltage mobile pendant with reversing switch supports easy control, while four safety full stops contribute to safer operation. With options such as remote control, cable reels, batteries for independent gantry use, and hoist and travelling trolley integration, VGIM can be adapted to different handling needs.
Load capacity
1000kgto10000kg
Aeronautics
Automotive
Food industry
Pharmaceuticals
Chemicals
Mechanical industry
Electronics industry
:quality(80))
Safe motorized travel under load without extra handling.
VGIM gantry can be moved loaded on a smooth, clean floor.
Controlled movement and positioning.
Swiveling of the gantry by inversions of the two motors.
Self rotating with 2-speed.
Designed for operation in both indoor and outdoor environments.
:quality(80))
VGIM motorized gantry delivers efficient handling of heavy loads with powered travel movement, precise speed control, and robust welded construction. Designed for both indoor and outdoor use, it combines high load capacities, smooth maneuverability, and advanced safety features to support demanding industrial operations
VGIM motorized gantry delivers efficient handling of heavy loads with powered travel movement, precise speed control, and robust welded construction. Designed for both indoor and outdoor use, it combines high load capacities, smooth maneuverability, and advanced safety features to support demanding industrial operations
:quality(80))
Verlinde VGI gantry provides a flexible lifting solution for workshops and industrial sites. Its freestanding design, ability to move under load, and capacities up to 5 tonnes help maximize productivity while adapting to changing operational needs.
:quality(80))
VGPA gantry combines a lightweight aluminium Eurosystem profile with adjustable height and foldable construction for maximum portability. Designed for flexible lifting applications, it can be quickly assembled, easily transported, and moved under load, making it ideal for maintenance, assembly, and temporary handling operations
VGIM is a motorized I-profile workshop gantry crane for loads from 1000 to 10000 kg. Designed to accommodate a large variety of hoists, it is typically equipped with an electric chain hoist. VGIM has 2 travelling speeds with inverter (travel movement) and 2 swiveling speeds (rotation).

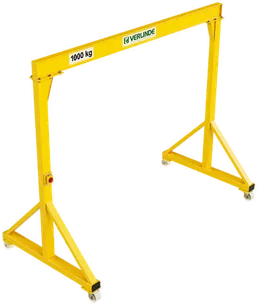

VGI is a range of manually driven standard I-profile gantries for loads from 500 to 5000 kg. Designed to accommodate any hoists, it can be equipped with either a hand or an electric chain hoist. VGI can be moved while under load, and dimensions can be customized on request.
VGPA is a range of standard aluminium hollow profile gantries for loads from 250 to 2000 kg. Designed to accommodate any hoist, this foldable, lightweight and manually driven gantry range can be equipped with either a hand or an electric chain hoist.
VGIM motorized gantry delivers efficient handling of heavy loads with powered travel movement, precise speed control, and robust welded construction. Designed for both indoor and outdoor use, it combines high load capacities, smooth maneuverability, and advanced safety features to support demanding industrial operations
Verlinde VGI gantry provides a flexible lifting solution for workshops and industrial sites. Its freestanding design, ability to move under load, and capacities up to 5 tonnes help maximize productivity while adapting to changing operational needs.
VGPA gantry combines a lightweight aluminium Eurosystem profile with adjustable height and foldable construction for maximum portability. Designed for flexible lifting applications, it can be quickly assembled, easily transported, and moved under load, making it ideal for maintenance, assembly, and temporary handling operations
