VHR Ex
- Capacity
- 500 to 20000kg
placeholder
:quality(80):focal(589x248:590x249))
:quality(80))
:quality(80))
Ex-compliant for safe material handling in classified areas.

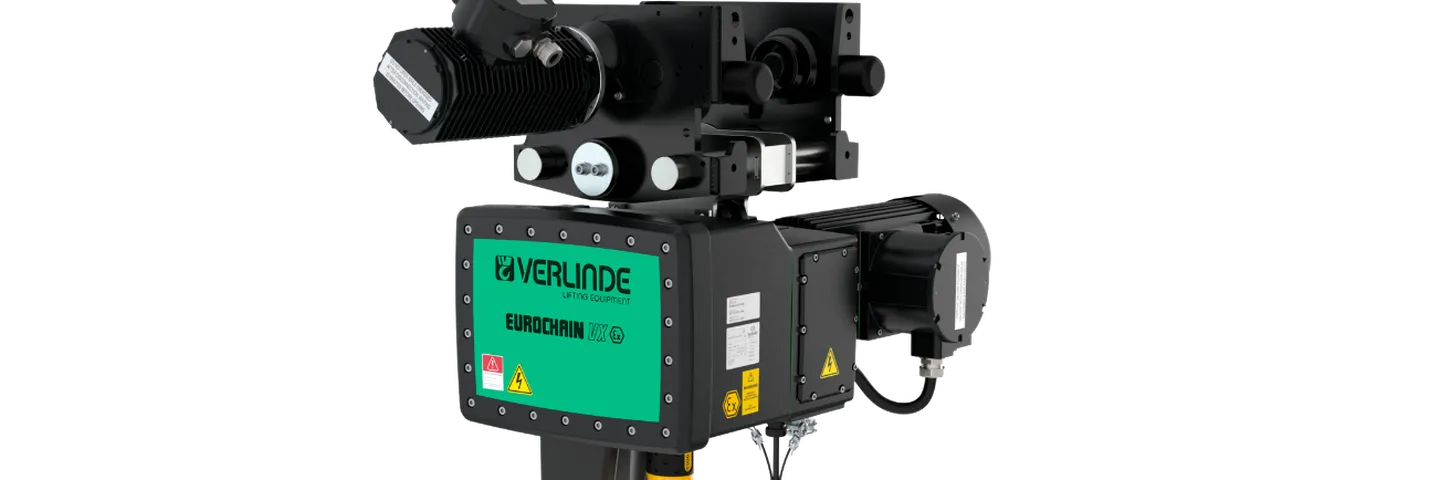

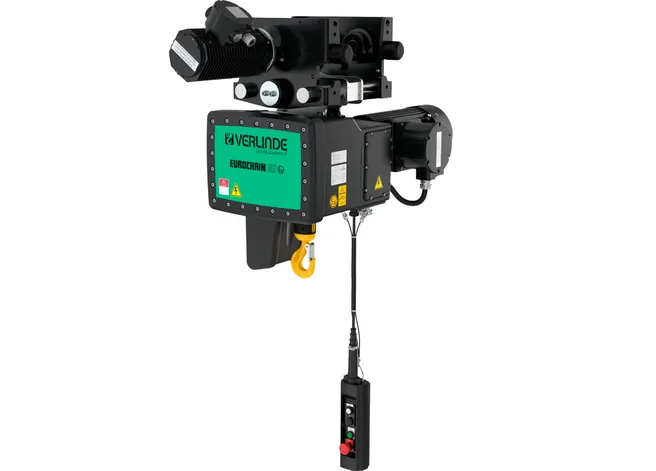

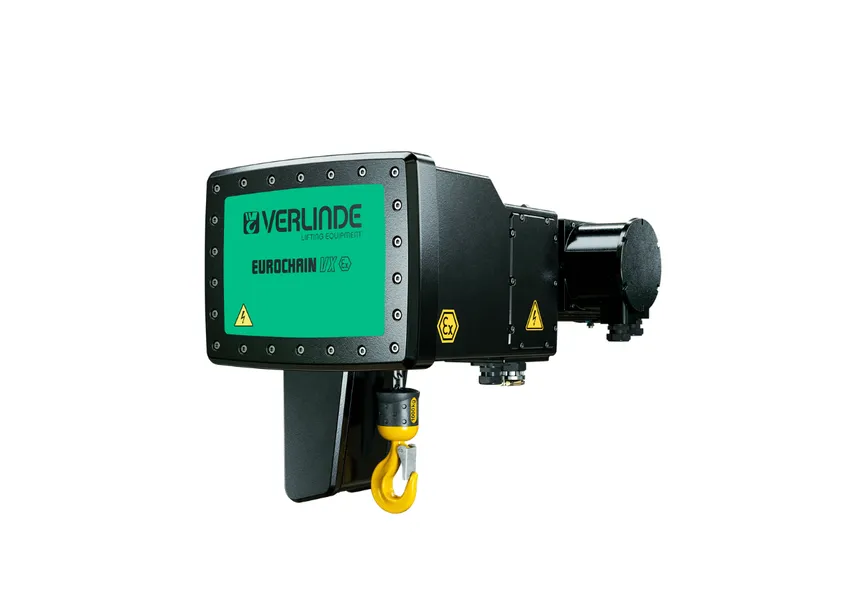

Designed for hazardous environments, Eurochain VX Ex zone 1, 2 & 21 is an Ex-proof hoist complying with ATEX requirements for gas and zones dust areas, supporting safer lifting operations where explosive atmospheres may occur. This compact hoist is available in three key configurations: a fixed hoist suspended, a hoist on a push-travel monorail trolley, and a hoist on an electrically driven monorail trolley. Its suspension lug with a large opening simplifies installation and optimizes lifting height, while its reduced dimensions allow improved hook approach. Compatible with existing trolleys, this range ensures easy integration into both new and existing installations.
Hazardous-area chain hoist with ATEX/IECEx compliance.
Eurochain VX Ex zones 1, 2 & 21 is engineered for hazardous-area lifting in gas/vapour (zones 1 and 2) and combustible dust (zone 21) environments—combining the latest safety regulations with notified body certification for the complete equipment. Notified body certification is provided for the complete equipment, and, built-in inverter travelling comes as standard, delivering smoother, more controlled movements and improved operational efficiency. Every critical component is Ex-rated and thoroughly tested to maximize safety where it matters most. Advanced temperature monitoring helps prevent overheating—even if the equipment is used beyond rated values—supporting safe, reliable performance in demanding conditions. Safety is further strengthened by a separated brake torque path from the motor torque path, and a hoisting brake designed for lifetime durability—helping maintain controlled load handling in both T‑class-limited gas atmospheres and dust-sensitive zone 21 operations.
Load capacity
320kgto2500kg
Standard lifting range
3mto40m
Food industry
Paper industry
Pharmaceuticals
Chemicals
Waste recovery
Mechanical industry
Electronics industry
:quality(80))
Marking of the hoists according ATEX:
Equipment caterogy 2G (Zone 1) :
Ex II 2G Ex db eb h IIC T4 Gb
Equipment caterogy 3G (Zone 2):
Ex II 3G Ex db ec h IIC T3 Gc
Equipment caterogy 2D (Zone 21):
Ex II 2D Ex h tb IIIC T120°C Db
Designed and certified according to the latest safety regulations.
Notified Body certification for the complete equipment.
All required parts are Ex-proof rated and tested to maximize safety.
Suspension lug with a large opening, making installation easier and optimizing lifting height. Compatible with existing trolleys.
DAT hoist chain with improved wear resistance in dusty environments and under harsh operating conditions.
Optimized hoist brake requiring no adjustment and only minimal maintenance.
Easy access to the main components for the maintenance.
Inverter travelling as standard for smooth, controlled movement.
Hoisting brake designed for lifetime performance.
Reduced dimensions enabling improved hook approach.
Increased motor robustness thanks to in-house development specifically adapted for hoists.
Optimized gearbox improving hoist efficiency.
Robust safety electrical limit switch for the upper and lower lifting hook positions.
Improved safety thanks to preventive overheating sensors on the hoisting motor.
More precise torque limiter adjustment to provide greater safety for the user and the building structure in case of overload.
:quality(80):focal(586x175:587x176))
Lifting speed: from 0,7 m/min to 16 m/min
Versions: hook suspended, normal headroom
Trolley: motorized, push
Lifting speed: from 0,7 m/min to 16 m/min
Versions: hook suspended, normal headroom
Trolley: motorized, push
:quality(80))
Lifting speed: from 4 m/min to 16 m/min
Versions: hook suspended, normal headroom,
Trolley: motorized
:quality(80))
Lifting speed: from 2 m/min to 16 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Compact and robust Ex-proof electric chain hoist for zone 1, 2 & 21
Compact and robust Ex-proof electric chain hoist for zone 22

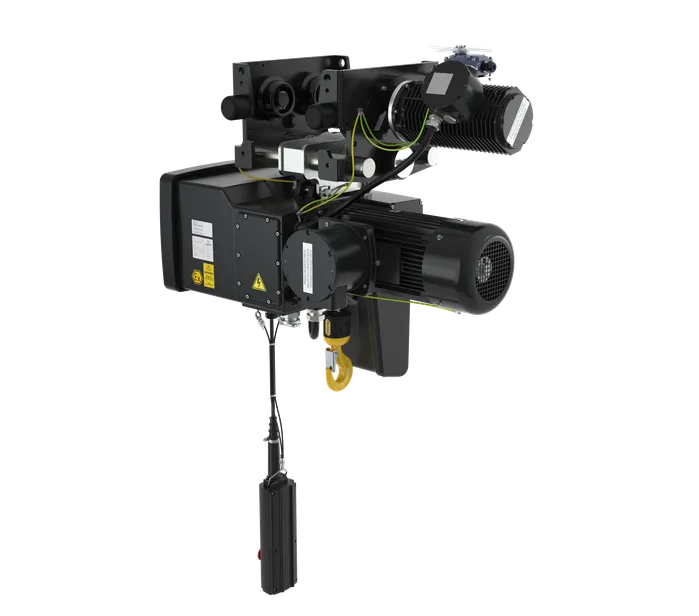

Designed for hazardous environments, Eurobloc VT Ex zones 1, 2, 21 & 22, stands out in particular for its compact size, near-vertical lifting capability (minimizing lateral hook block displacement) and its standard adjustable travel speed, enabling smoother, more precise load handling.
Lifting speed: from 0,7 m/min to 16 m/min
Versions: hook suspended, normal headroom
Trolley: motorized, push
Lifting speed: from 4 m/min to 16 m/min
Versions: hook suspended, normal headroom,
Trolley: motorized
Lifting speed: from 2 m/min to 16 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
