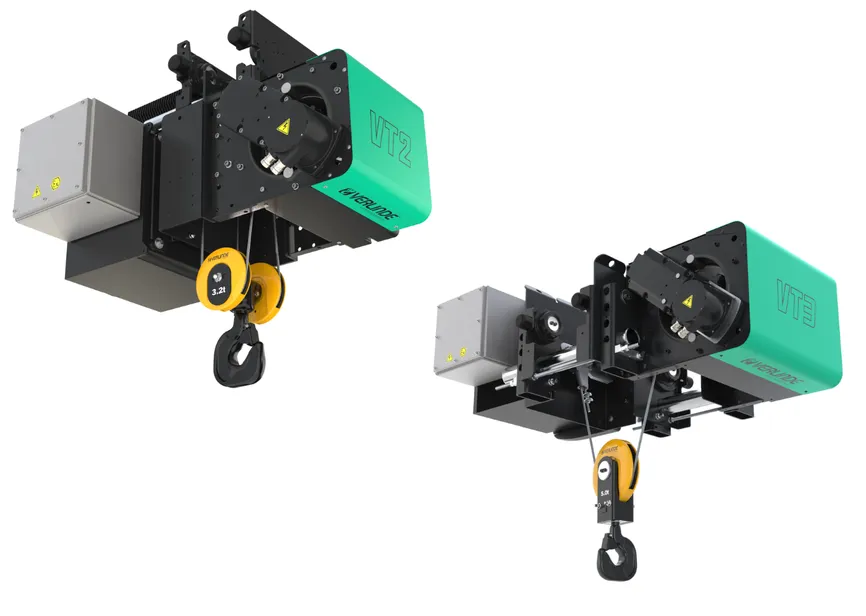

Market-leading compactness. ATEX-compliant lifting.
Designed for hazardous environments, Eurobloc VT Ex is an Ex-proof hoist complying with ATEX requirements for zones 1 and 2 (gas) and zones 21 and 22 (dust), supporting safer lifting operations where explosive atmospheres may occur. Eurobloc VT Ex, in its standard version, delivers one of the market-leading compactness with one of the best smallest hook approach dimensions, enabling better use of building height and work areas without compromising productivity. Suitable for many installations, Eurobloc VT Ex range offers fixed, normal, double girder, swivel trolley and machinery versions.
Vertical Lift Innovation, ATEX-ready.
Born from Verlinde’s expertise, Eurobloc VT Ex, backed by 13 dedicated patents, is designed to raise the standard of performance — including in hazardous environments. It stands out in particular for its near-vertical lifting capability (minimizing lateral hook block displacement) and its standard adjustable travel speed, enabling smoother, more precise load handling. Together, these specificities help increase positioning accuracy, enhance operator comfort, and deliver greater control over movement, while supporting safer operations in potentially explosive atmospheres.
Load capacity
800kgto80000kg
Standard lifting range
4mto98.5m
Food industry
Paper industry
Pharmaceuticals
Chemicals
Waste recovery
Mechanical industry
Electronics industry
:quality(80))
All required parts are properly Ex-proof rated and tested to ensure the maximum safety of the equipment.
Ex-proof ATEX or IECEx certifications.
Marking of the hoists according to ATEX:
Zone 1 IIB T4
Zone 1 IIC T4
Zone 2 IIB T3
Zone 2 IIC T3
Zone 21 IIIC T135°C
Zone 22 IIIC T135°C
Hook approach dimensions are stated to be among the smallest on the market.
Near-vertical lifting: very limited lateral displacement of the hook block during lifting operations.
Hoisting brake setting for the entire hoist life (in normal use) and with dust protection.
Temperature monitoring preventing overheating of the hoist in case the equipment is used over the rated values.
Hoisting brake designed for a lifetime
Variable travelling speed for precise positioning of loads.
Monitoring to manage the hoist solicitation status.
Overload limiter (in compliance with the Machinery Directive), low-voltage control, and swivel hook/hook block equipped with a safety latch.
Optional drum brake.
:quality(80))
Lifting speed: from 2 m/min to 16 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Lifting speed: from 2 m/min to 16 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
:quality(80))
Lifting speed: from 4 m/min to 16 m/min
Versions: hook suspended, normal headroom,
Trolley: motorized
:quality(80):focal(586x175:587x176))
Lifting speed: from 0,7 m/min to 16 m/min
Versions: hook suspended, normal headroom
Trolley: motorized, push

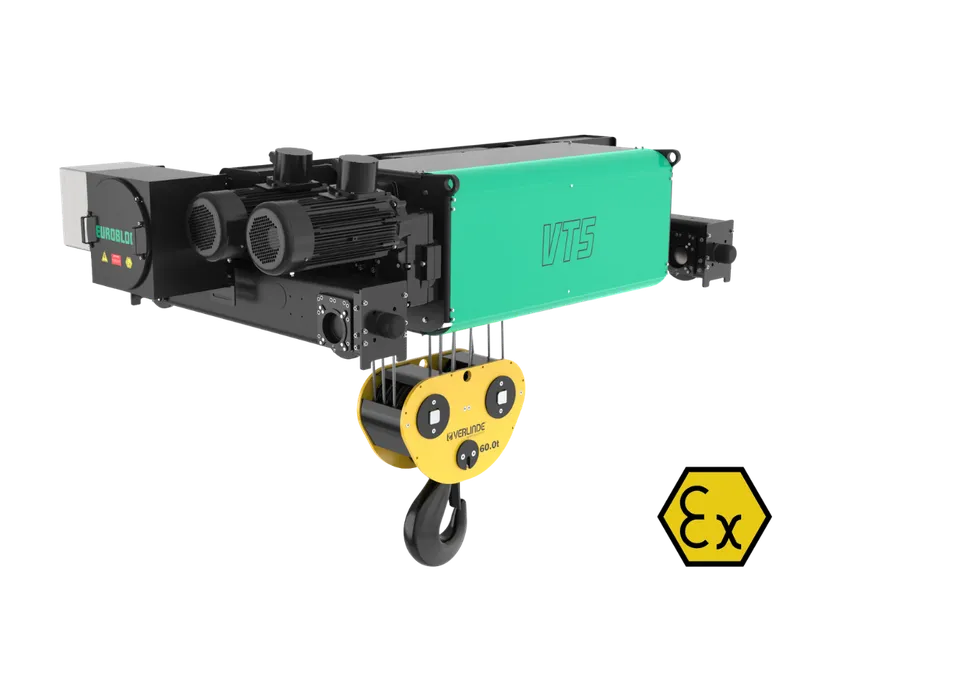

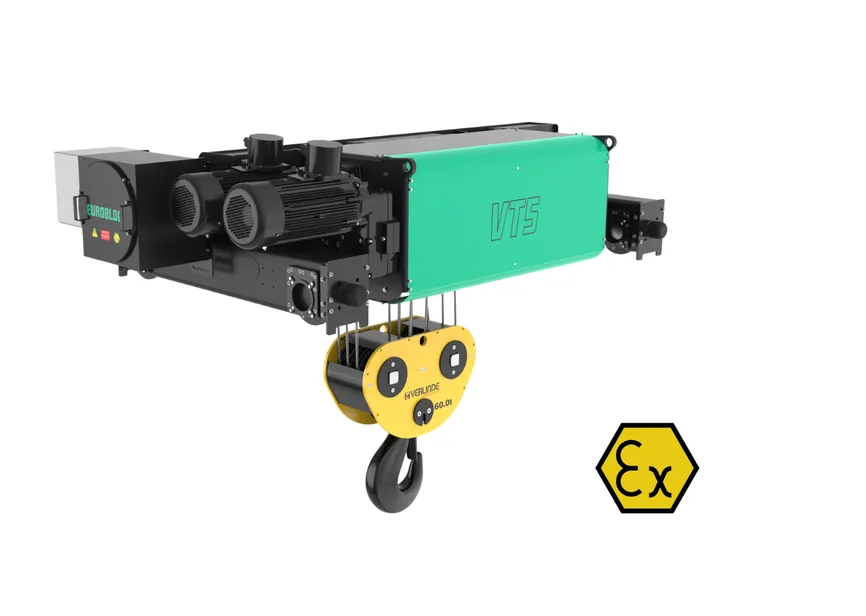

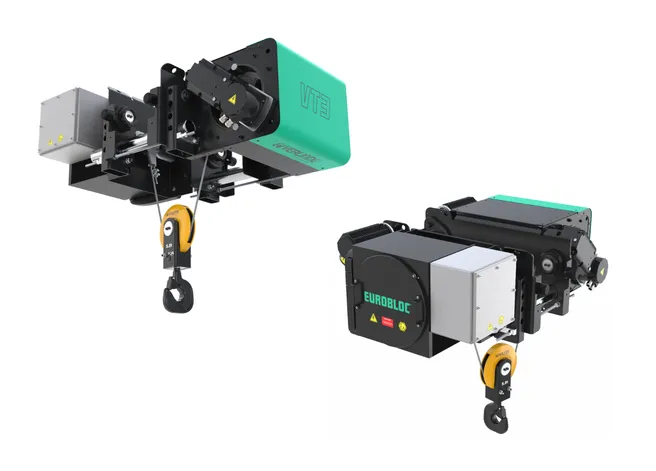

Designed for hazardous environments, Eurobloc VT Ex zones 1, 2, 21 & 22, stands out in particular for its compact size, near-vertical lifting capability (minimizing lateral hook block displacement) and its standard adjustable travel speed, enabling smoother, more precise load handling.

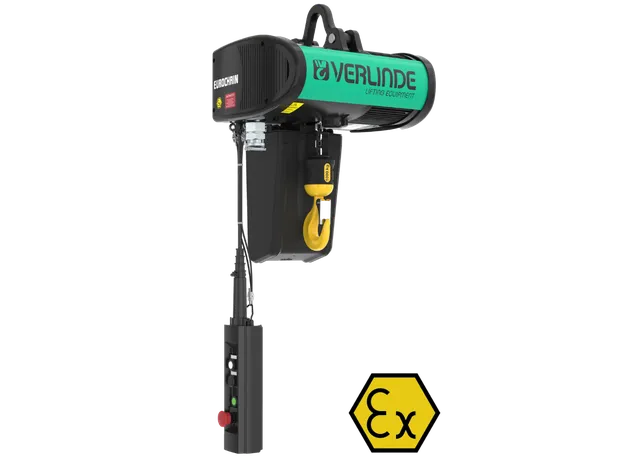

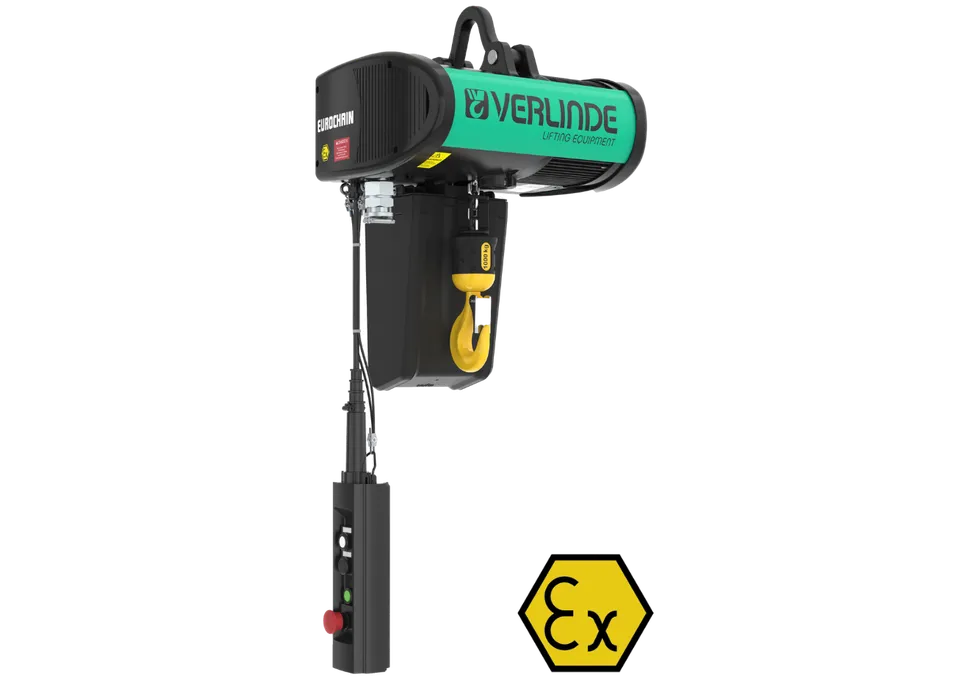

Compact and robust Ex-proof electric chain hoist for zone 22

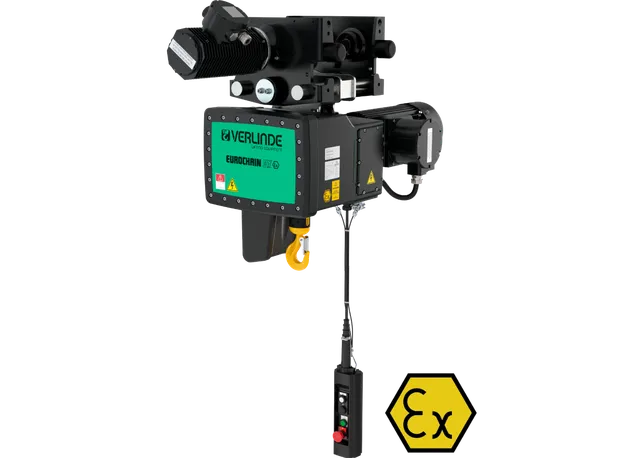

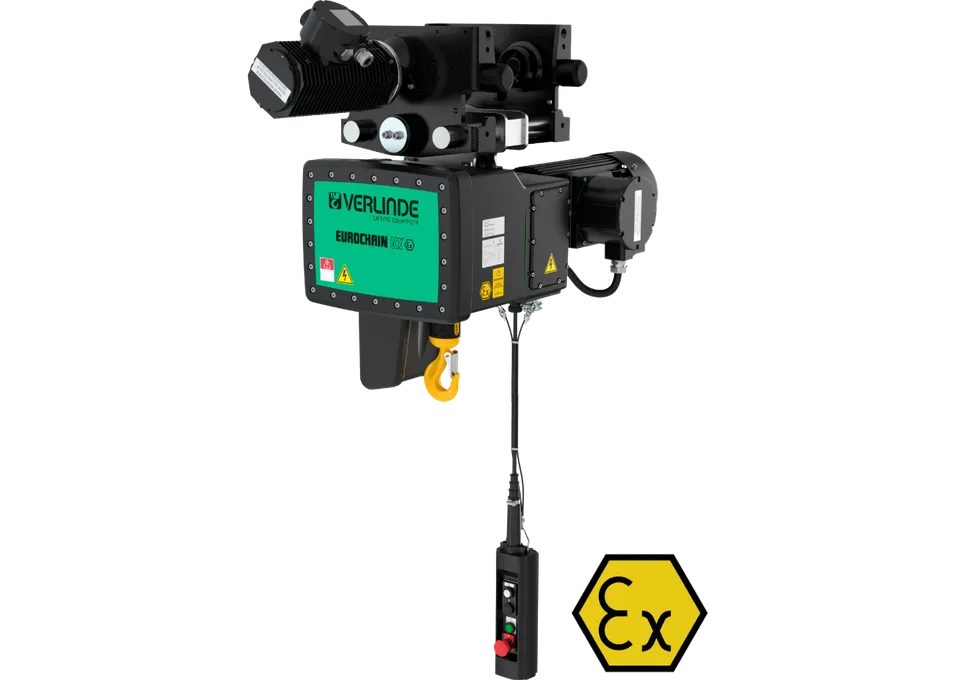

Compact and robust Ex-proof electric chain hoist for zone 1, 2 & 21
Lifting speed: from 2 m/min to 16 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Lifting speed: from 4 m/min to 16 m/min
Versions: hook suspended, normal headroom,
Trolley: motorized
Lifting speed: from 0,7 m/min to 16 m/min
Versions: hook suspended, normal headroom
Trolley: motorized, push
