Entry-level solution for electrical lifting.

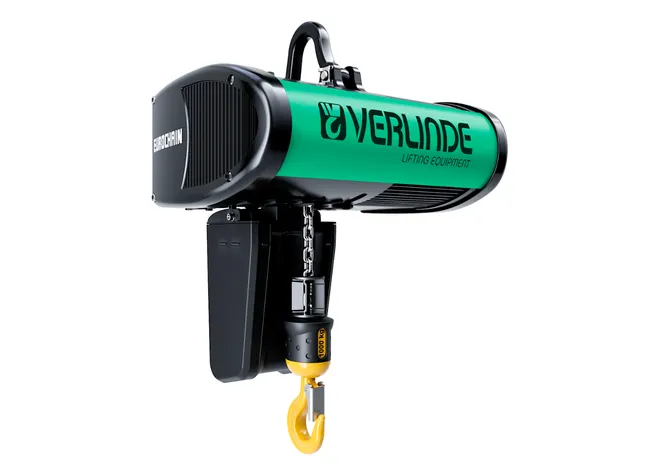

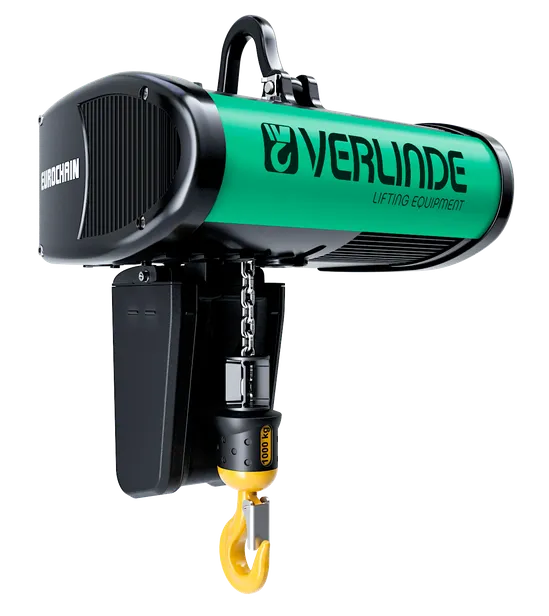

Eurochain VX‑S is a single‑speed version of Eurochain VX electric chain hoist. It is available in three key configurations: a fixed hoist suspended by a suspension lug, a hoist on a push‑travel monorail trolley, and a hoist on an electrically driven monorail trolley. Its suspension lug with a large opening simplifies installation and optimizes lifting height thanks to the reduced C dimension, while the compact overall dimensions improve hook approach. Compatible with existing trolleys, Eurochain VX‑S ensures straightforward integration into both new and existing installations.
Compact single speed equipment.
Eurochain VX-S delivers dependable everyday lifting with fast, straightforward installation—ideal when reliable performance is needed without complex setup. With a 3 m height of lift and single‑speed handling, it keeps operation simple and consistent for routine tasks. Designed in standard with smart components for people and installation safety, it supports confident use in demanding industrial environments.
Load capacity
125kgto1000kg
Standard lifting range
3mto60m
Mining
Quarries
Mechanical industry
:quality(80))
Single lifting speed.
Entry-level solution for electrical lifting.
Suspension lug with a large opening, making installation easier and optimizing lifting height. Compatible with existing trolleys.
DAT hoist chain with improved wear resistance in dusty environments and under harsh operating conditions.
Optimized hoist brake requiring no adjustment and only minimal maintenance.
Easy access to the main components for the maintenance.
Reduced dimensions enabling improved hook approach.
Increased motor robustness thanks to in-house development specifically adapted for hoists.
Optimized gearbox improving hoist efficiency.
Robust safety electrical limit switch for the upper and lower lifting hook positions.
Improved safety thanks to preventive overheating sensors on the hoisting motor.
More precise torque limiter adjustment to provide greater safety for the user and the building structure in case of overload.
:quality(80))
Lifting speed from 2 m/min to 6 m/min
Versions: bracket, low headroom, normal headroom, swivel
Trolley: motorized
Lifting speed from 2 m/min to 6 m/min
Versions: bracket, low headroom, normal headroom, swivel
Trolley: motorized
:quality(80))
Lifting speed from 4 m/min to 16 m/min
Versions: bracket, low headroom, normal headroom, swivel trolley
Trolleys: motorized / push
:quality(80))
Hook suspended
Torque limiter
Clutch adjusted and tested accordingly to EN 13157
Eurochain VX-S is a single speed entry-level solution for electrical lifting.
With its compact product design and three key configurations (fixed hoist suspended by lug, hoist on a monorail trolley with push travel, and hoist on a monorail trolley with electric travel), Eurochain VX range integrates easily into many production environments. Thanks to its many optimized and reinforced components, it also greatly improves the durability of installations.
VHR rugged and compact manual hoist allows lifting loads from 250kg up to 20 tons in indoor or outdoor environments where only manual power is available.
Lifting speed from 2 m/min to 6 m/min
Versions: bracket, low headroom, normal headroom, swivel
Trolley: motorized
Lifting speed from 4 m/min to 16 m/min
Versions: bracket, low headroom, normal headroom, swivel trolley
Trolleys: motorized / push
Hook suspended
Torque limiter
Clutch adjusted and tested accordingly to EN 13157
