Compact open winches with high lifting performance.

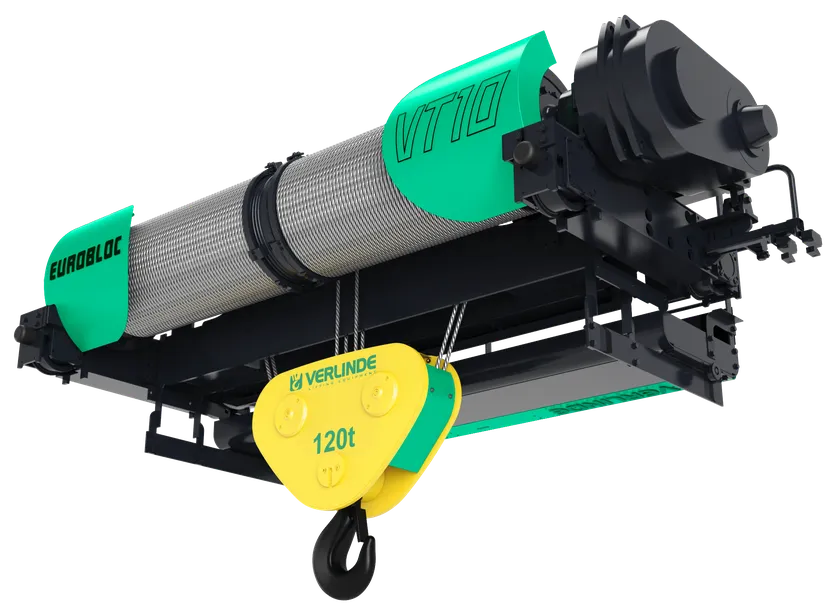

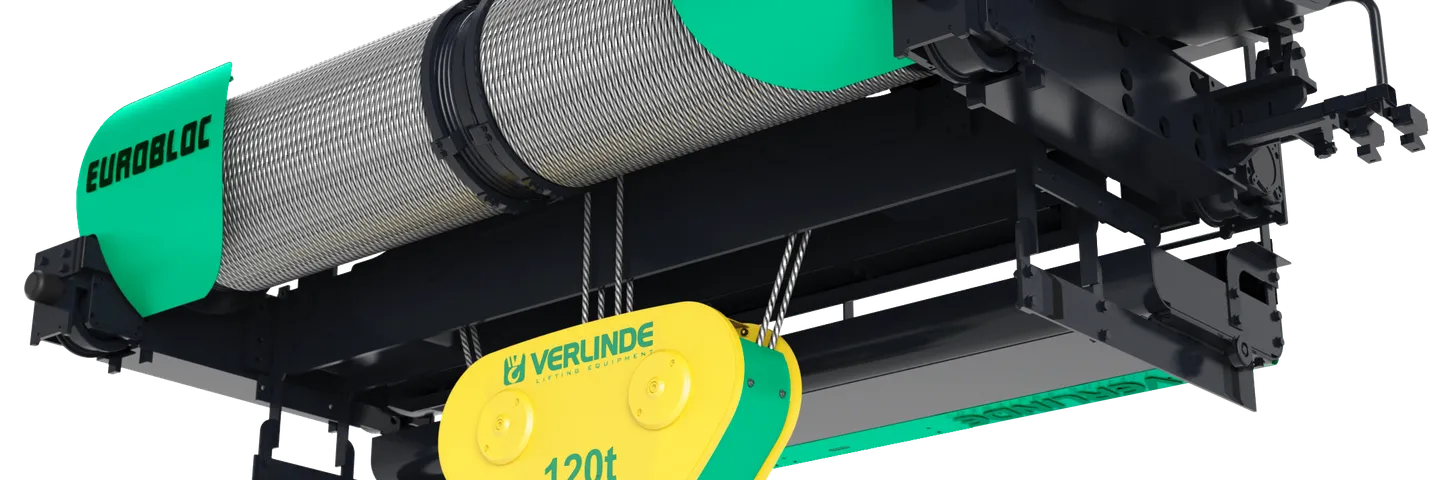

Eurobloc VT9-10-11-12 extends Eurobloc VT range with large, yet compact, electric open winches that outperform typical market solutions in space efficiency and lifting capability. Closed-loop inverter technology enables rapid, variable lifting speeds for smooth, precise control, while the centred lifting concept improves stability and positioning. High load capacities can reduce the need for twin hoists, and optimized trolley wheel positioning improves load distribution on the supporting structure.
Precision lifting with advanced safety & condition monitoring.
Combining high-performance mechanics, smart drive control, and advanced safety monitoring, Eurobloc VT open winch range delivers smoother handling, higher uptime, and stronger protection for people and equipment. In addition, safety and reliability are reinforced with high-safety disk brakes, intelligent brake monitoring (slip/blocking detection), multi-level lifting and travel limit switches (including double end-of-travel protection), and overload and thermal protections. Built for harsh environments and long service life, its commissioning and maintenance are simplified with ready-to-use connection units.
Load capacity
10000kgto250000kg
Standard lifting range
10mto129m
Aeronautics
Automotive
Shipyards
Port industry
Metallurgy
Power plants
Waste recovery
Electronics industry
:quality(80))
High-capacity yet compact open winch format.
Large load capacities avoiding the use of twin hoists.
Centred lifting concept.
System for monitoring the state of the hoist.
High-performance hoisting motor with closed-loop variable speed and encoder feedback enables precise, stable lifting with smooth starts/stops and accurate positioning.
Variable speed travel improves control while reducing mechanical stress.
Optimum positioning of the wheels on trolley enables a better load distribution on supporting structure.
High safety hoisting and travelling brake (disk brake).
Intelligence brake monitoring by inverter drive with detection of the load slip or blocking.
Overload and thermal protections on lifting and travelling motors.
:quality(80))
Lifting speed from 0.7 m/min to 19 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
Lifting speed from 0.7 m/min to 19 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
:quality(80))
Lifting speed from 10 m/min to 20 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
:quality(80))
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
Eurobloc VT9-10-11-12 extends Eurobloc VT range with large, yet compact, electric open winches providing greater lifting capacity (from 10 to 250 tonnes), coupled with smooth handling, high uptime, and strong protection for people and equipment.
Verlinde open winch family is extended with PDW, a process duty open winch designed to meet higher duty group requirements from M6. Its wide capacity range (6300 to 80000kg), modular open winch design, built-in safety features, and standard extended speed range (ESR) technology support safe load handling, efficient cycle times, and lasting performance in intensive lifting operations.
Eurobloc VT is a wire rope hoist designed for high performance and productivity. Its key differentiating features include a compact design, superior lifting guidance through near-vertical lifting, enhanced positioning accuracy thanks to variable travel speed control, and advanced monitoring functions (MT4) for tracking operating life and load cycles.
Lifting speed from 0.7 m/min to 19 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
Lifting speed from 10 m/min to 20 m/min
Versions: fixed, double girder, machinery.
Trolley: motorized
Lifting speed from 0.4 m/min to 20 m/min
Versions: fixed, normal headroom, double girder, swivel trolley, machinery.
Trolley: motorized
